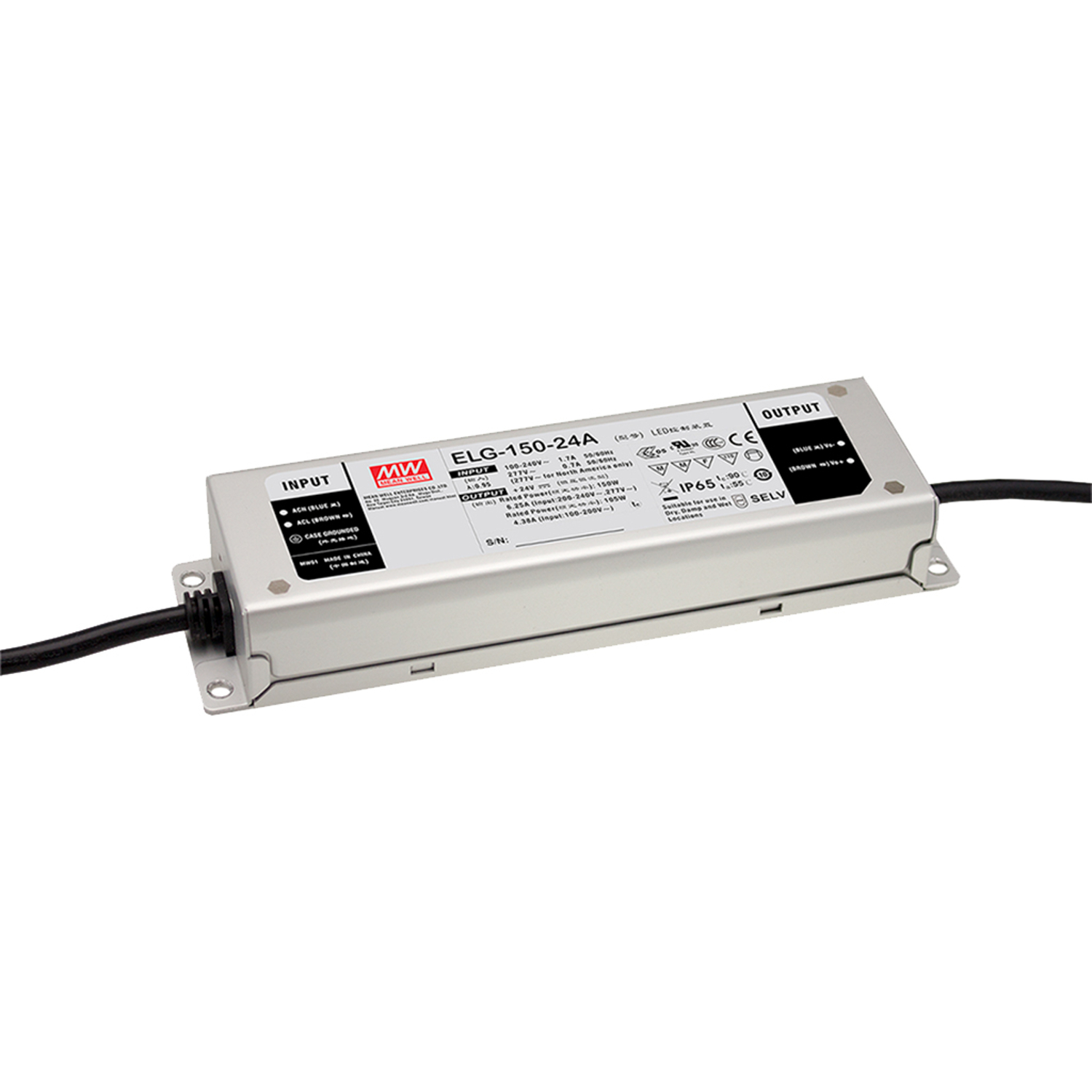

AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC; 3 wire input; Output 24VDC at 6.25A; Adjust CC/CV with Potentiometer; IP65; Cable output
Properties
- Series: ELG-150-V-A
- Brand: Mean Well
- Dimensions LxWxH (mm): 278x92x50 mm
- Warranty: 12 Months Bring-In
- Gross weight: 880
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 150
- Input voltage (V): 100 - 305
- Min. input voltage: 100
- Max. input voltage (V): 305
- Max. output current (A): 6.25
- Number of output currents: 1
- IP rating: IP65
- LED driver: Yes
- Dimming technologies: Analog, Potentiometer
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 9.72
