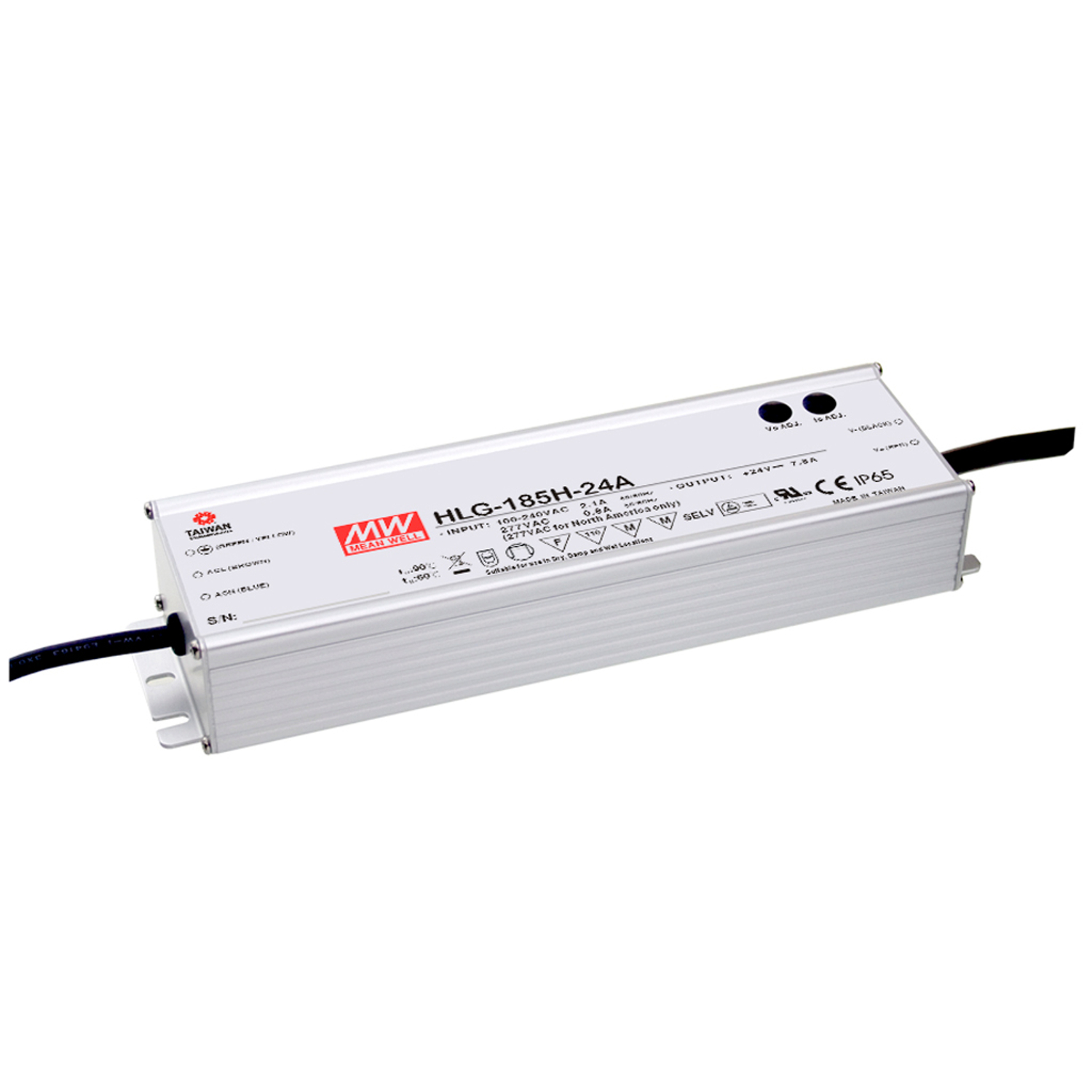

AC-DC Single output LED Driver Mix Mode (CV+CC) with built-in PFC; Output 24Vdc at 7.8A; IP65; Cable output; Dimming with Potentiometer
Properties
- Series: HLG-185H
- Brand: Mean Well
- Dimensions LxWxH (mm): 220x68x38.8 mm
- Warranty: 84 Months Bring-In
- Gross weight: 1160
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 185
- Input voltage (V): 90 - 305
- Min. input voltage: 90
- Max. input voltage (V): 305
- Max. output current (A): 7.8
- Number of output currents: 1
- IP rating: IP65
- LED driver: Yes
- Dimming technologies: Analog, Potentiometer
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 13.35
