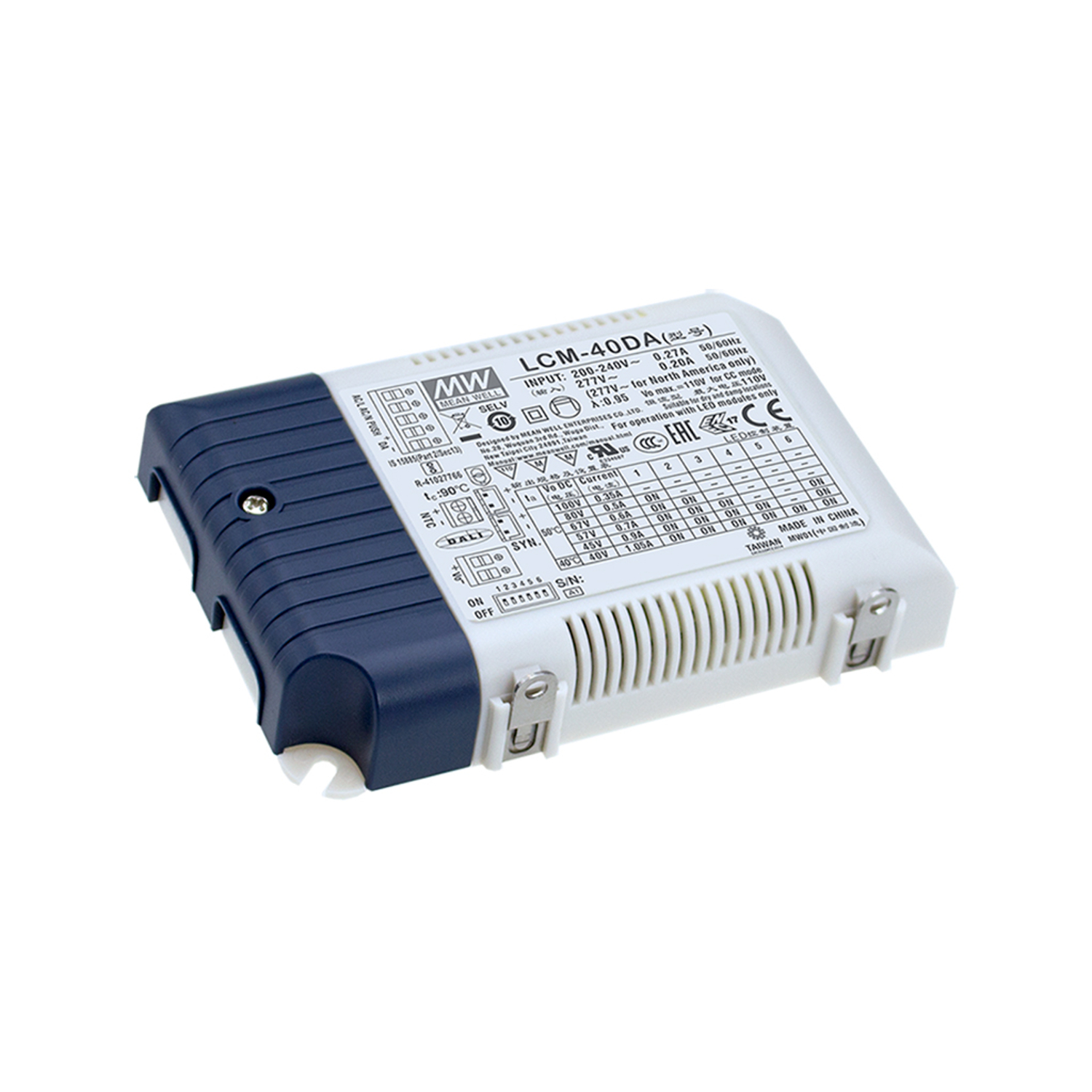

AC-DC Multi-Stage LED driver Constant Current (CC); Modular output 0.35A/0.5A/0.6A/0.7A/0.9A/1.05A; Dimming with DALI & push; extra 12Vdc at 50mA
Properties
- Series: LCM-40
- Brand: Mean Well
- Dimensions LxWxH (mm): 164x94x30 mm
- Warranty: 36 Months Bring-In
- Gross weight: 220
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 40
- Max. output voltage (V): 100
- Number of output voltages: 6
- Max output power (W): 40
- Input voltage (V): 180 - 295
- Min. input voltage: 180
- Max. input voltage (V): 295
- Max. output current (A): 1.05
- Number of output currents: 6
- IP rating: IP20
- LED driver: Yes
- Dimming technologies: DALI, Push Button
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 4.8
