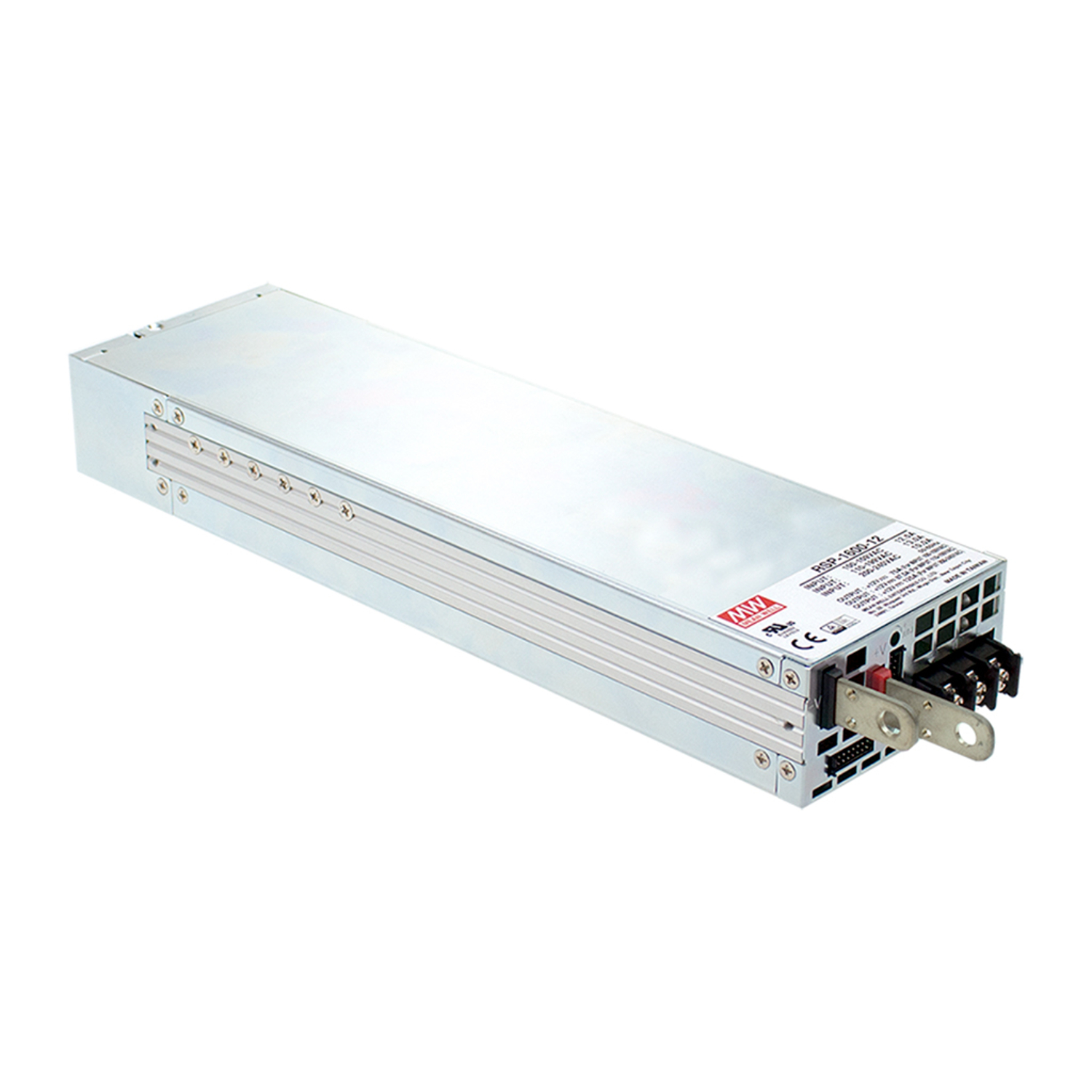

AC-DC Single output enclosed power supply with PFC; Output 24VDC at 67A; PFC; forced air cooling; 1U low profile
Properties
- Series: RSP-1600
- Brand: Mean Well
- Dimensions LxWxH (mm): 413x139x96 mm
- Warranty: 60 Months Bring-In
- Gross weight: 1940
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 1600
- Input voltage (V): 90 - 264
- Min. input voltage: 90
- Max. input voltage (V): 264
- Max. output current (A): 67
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: DC OK, ON/OFF, Ov.Tp., Rem.S, Vaux
- Carbon footprint (kgCO2e/pcs): 29.43
